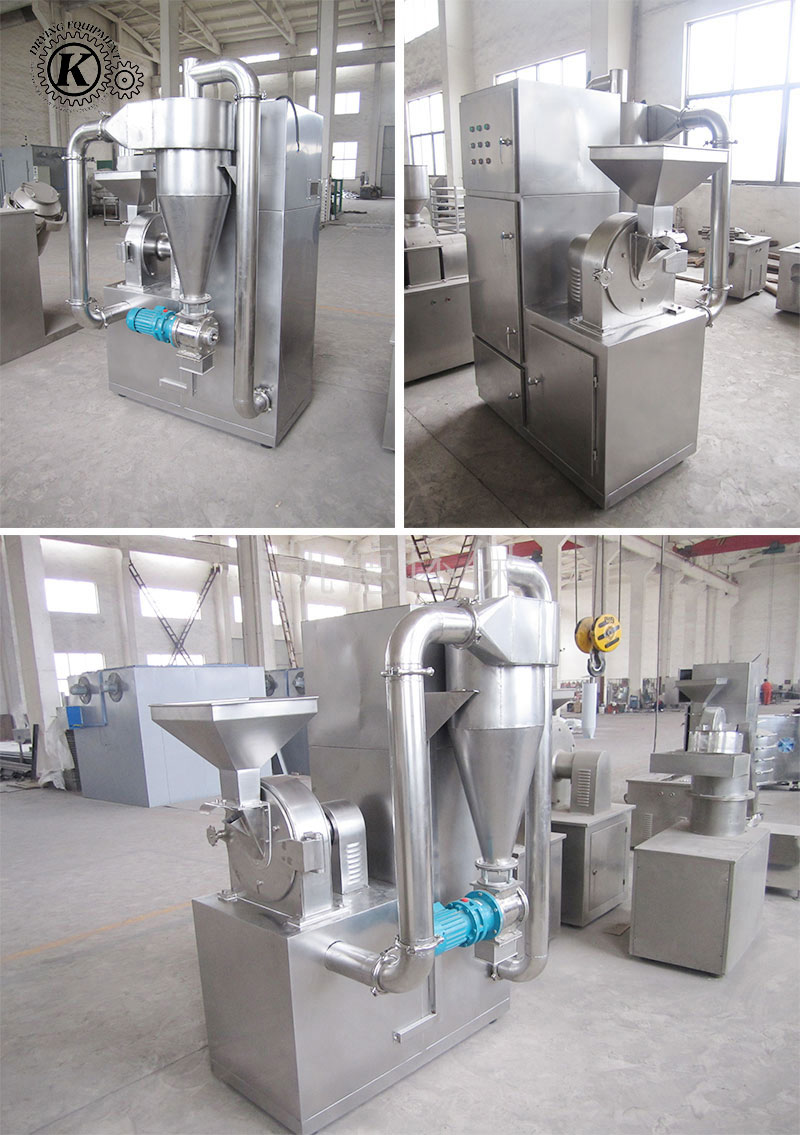

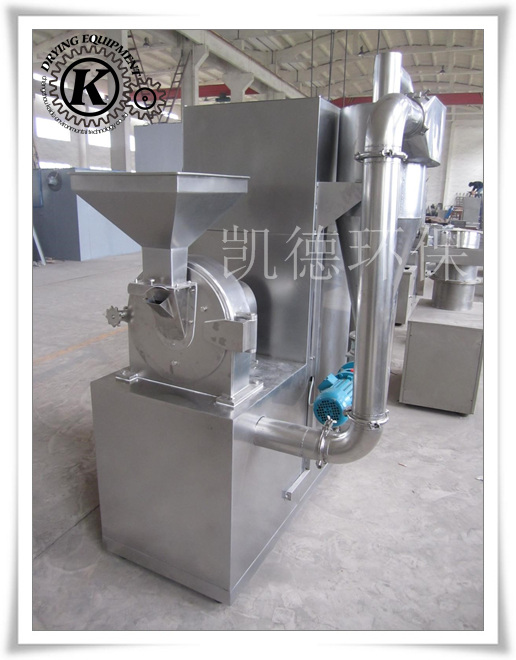

WF130, WF180 High Efficient crusher
Principle
This machine is suitable for small batch production or test sample test, the machine is a hammer mill for crushing medium hardness and viscosity is not a drug, chemical raw materials and food materials, the material from the hopper by screw conveyor rod into the crushing chamber, high speed rotation of the hammer smashed. The machine is simple in structure, easy assembly and disassembly and cleaning of the crushing chamber, crushing chamber where the material in contact with all parts made of stainless steel, corrosion can make to better meet the health requirements of the pulverized material. Further WF180 cooling jacket configured to crushing.
Technical Parameters
| model | WF130 | WF180 |
| Spindle speed(r.p.m) | 13950 | 10000 |
| Spindle motor(rpm) | 0.75/2840 | 2.2/2840 |
| Feed motor(rpm) | 0.12/1400 | 0.18/1400 |
| Production capacity(kg/h) | 10-30 | 30-90 |
| Number of hammers | 6 | 8 |
| Maximum intake Liaoduo(mm) | ≤1 | ≤1 |
| Grinding fineness(mesh) | <Ф0.046(content≥90%) | <Ф0.046(content≥90%) |
| weight(kg) | 100 | 186 |
| Dimensions(mm)(L×W×H) | 686×580×1024 | 770×615×1126 |
.jpg)
.jpg)
.jpg)
