Double-screw Conical Mixer
Features:
This machine is a new, efficient, high-precision mixing equipment, widely used in mixing pharmaceutical, chemical, feed, dyes, food, petroleum, metallurgy, mining and other industries of various powder materials.
The aircraft rotation, revolution by a set of electric and cycloid reducer to complete, using two screws asymmetric stirring, the mixture was stirred a wide range of materials, more uniform mixing, mixing speed, proportion of the poor, mixed relatively large materials more appropriate mix of particulate material and compression wear small, heat-sensitive materials mixing does not produce the risk of overheating. Stable formulation after mixing, stratification and segregation phenomenon does not occur. Sealed clean, simple, safe operation, easy maintenance, long service life. Where the machine and material contact parts are stainless steel.

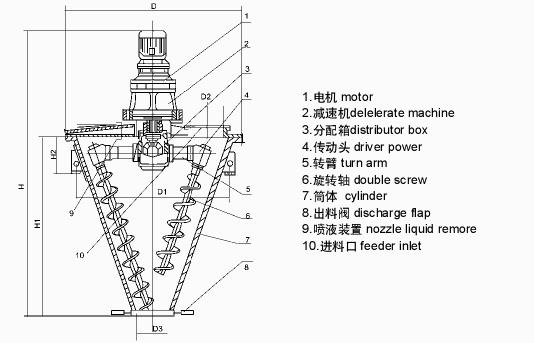

Structure and Properties:
model | Production capacity(kg/time) | Full volume(m3) | load coefficient |
loose density |
Material size | Motor Power(kw) | Mixing time(min) | Dimensions(mm) | Weight(kg) |
WHJ0.05 | 0.05 | 0.6 | -0.8 | 20-250 | 1.5 | 6-10 | Ф610×1450 | 200 | |
WHJ0.2 | 95 | 0.2 | 0.6 | -0.8 | 20-250 | 2.2 | 6-10 | Ф890×1850 | 600 |
WHJ0.5 | 190 | 0.5 | 0.6 | -0.8 | 20-250 | 3 | 6-10 | Ф1160×2250 | 800 |
WHJ1 | 380 | 1 | 0.6 | -0.8 | 20-250 | 4 | 8-10 | Ф1450×2700 | 1200 |
WHJ2 | 720 | 2 | 0.6 | -0.8 | 20-250 | 5.5 | 8-10 | Ф1850×3450 | 1800 |
WHJ4 | 1400 | 4 | 0.6 | -0.8 | 20-250 | 11 | 8-10 | Ф2260×4210 | 2500 |
WHJ5 | 2400 | 5 | 0.6 | -0.8 | 20-250 | 15 | 8-10 | Ф2578×4566 | 3400 |
WHJ6 | 2880 | 6 | 0.6 | -0.8 | 20-250 | 18.5 | 8-10 | Ф2710×4782 | 3550 |
WHJ8 | 3840 | 8 | 0.6 | -0.8 | 20-250 | 18.5 | 8-10 | Ф2950×5392 | 3700 |
WHJ10 | 4800 | 10 | 0.6 | -0.8 | 20-250 | 22 | 8-10 | Ф3168×5735 | 3950 |
