working principle:

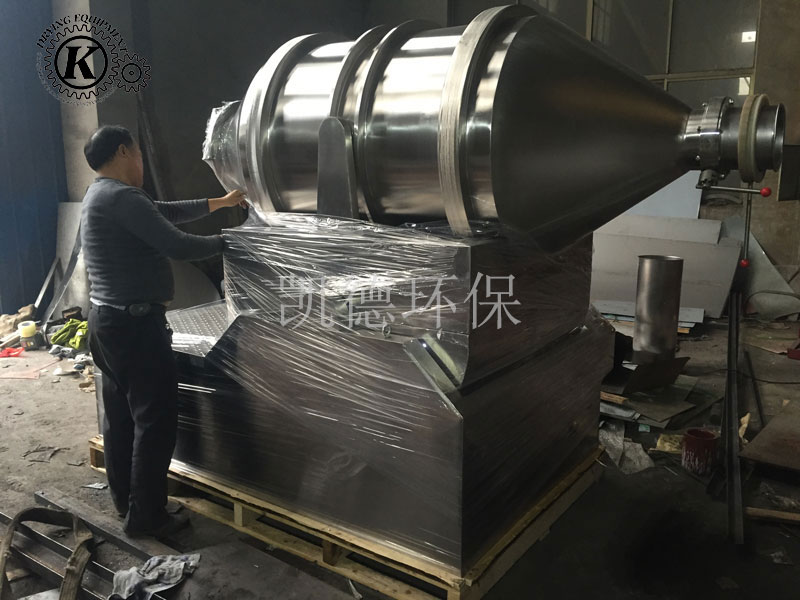

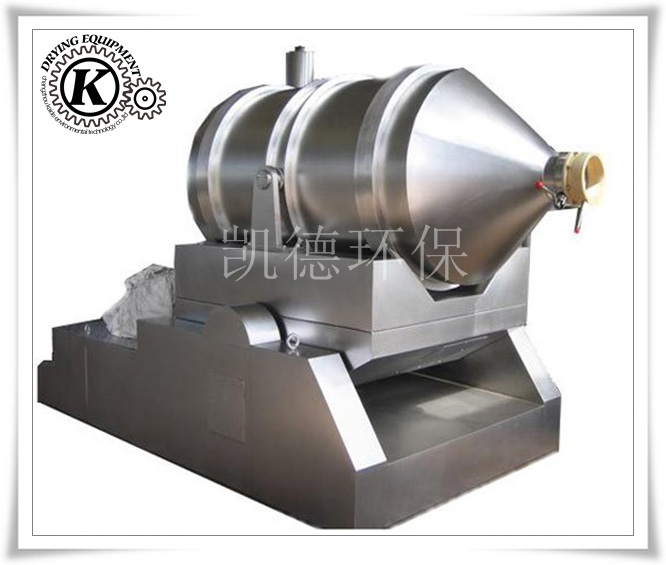

Dmensional mixer mainly consists of drum, swing frame rack three parts. Turn barreled swinging rack, supported by two of four wheel gear wheel its axial position. In the four support rollers, two of which drive wheel is rotated by the power generation system, drag the rotary drum is rotated, the swing frame by a group of crank rocker mechanism driven crank swing link mechanism mounted on the frame, the swing frame by bearings assembly supported on the rack.

Features:

EYH dimensional mixer drum can be two sports at the same time, a rotation of the drum, the drum and the other is with the swing of the swing frame. Blended with the material drum in the drum is rotated, flipped, blended at the same time, with the drum swinging back and forth about blending movement, under the combined effect of these two movements, the material is fully in a short time mixture. EYH dimensional mixer for mixing all powder, granular materials.

Technical Parameters:
