First, the main features of the device:

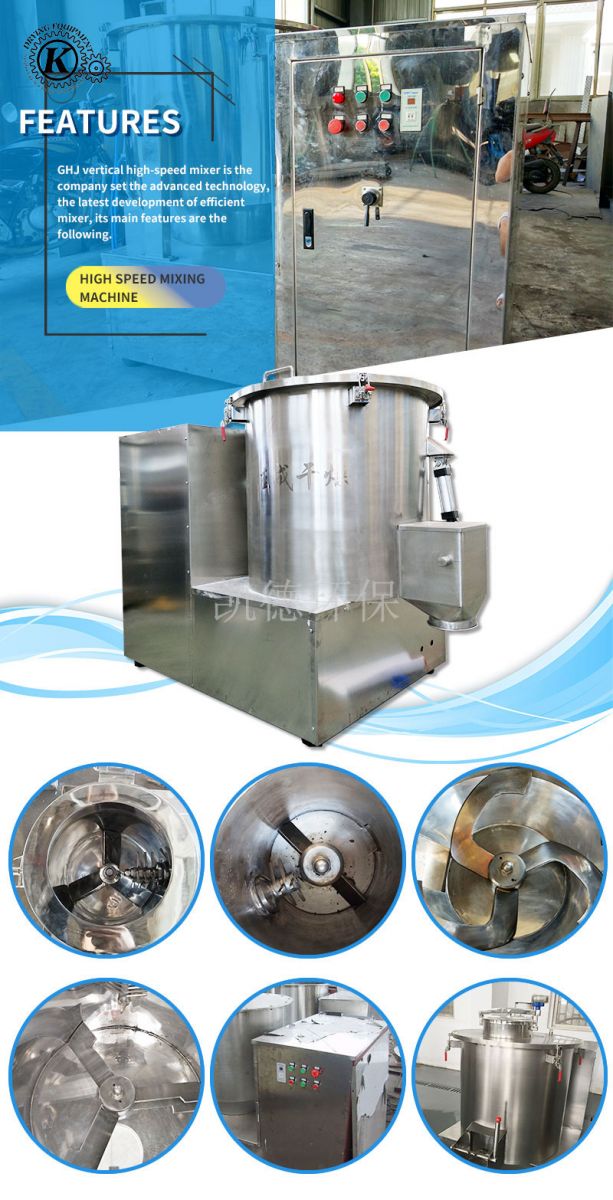

GHJ vertical high-speed mixer is the company set the advanced technology, the latest development of efficient mixer, its main features are the following.

1, due to centrifugal force, the bottom of the feed slurry leaves along the bottom of the tube wall material up continuously feeding the material from the upper portion of the center to fall down, so that the material circulation spiral.

2, high-speed particle slurry leaves the bulk material leaves the feed slurry delivered completely shattered.

3, since the two kinds of high-speed rotation of said leaf pulp, so make the material in a relatively short period of time to achieve the purpose of mixing, the mixing speed and the uniformity of the intermediate material are various domestic mixer after mixing can not be achieved without granular , evenness of mixing reaches one hundred percent.

4, open the discharge valve, the material fast, easy to clean equipment.

5, the aircraft material contact points are made of stainless steel, no material volatilization, deterioration and loss during the mixing process.

6, the machine is suitable for different proportions of dry, wet mixed materials, especially for stirring chicken, medicine powder, granules and other beverages complex mixture of materials.

Second, the principle:

GHJ vertical high-speed mixer pulp leaves from the bottom of the feed and the high-speed particle slurry composed of leaves. Leaf feeding slurry material continuously along the bottom of the cylinder wall upward feeding.

High-speed scrap material leaves the leaf pulp slurry material sent completely shattered. So that the material circulation in a spiral shape, the material in a relatively achieve the purpose of mixing in a short time.

Third, the technical parameters:

1, the working volume：350L

2, stirring weight：150kg

3, stirring power:7.37KW

4, Weight:600kg

5, Dimensions:1500×1090×1200（mm)
