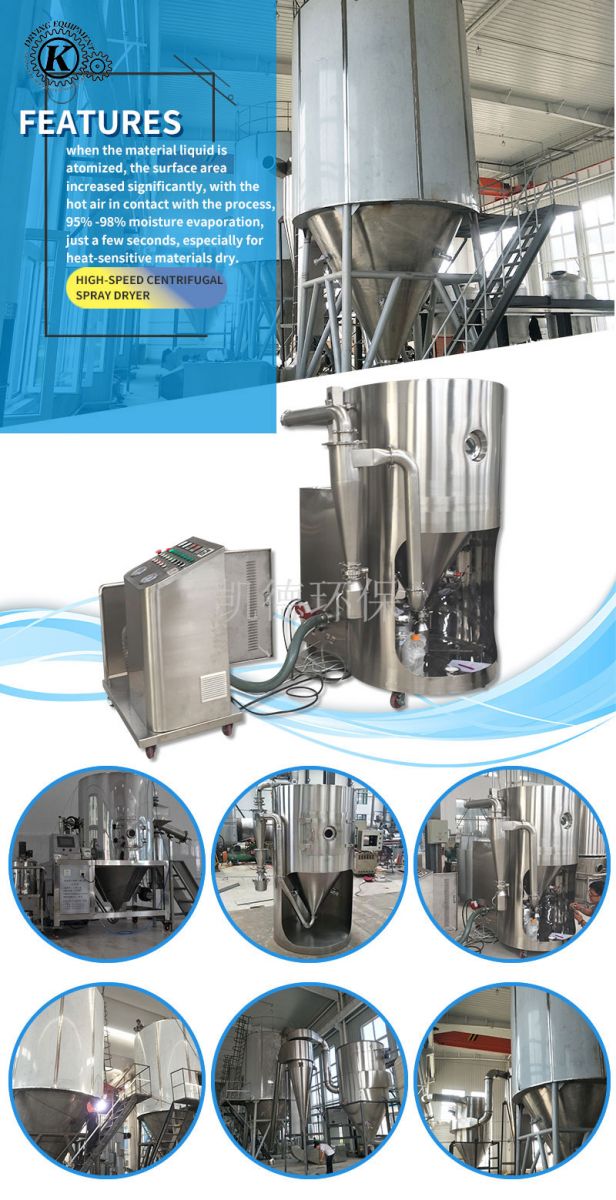

Spray Drying granulator

Application

※Pharmaceutical industry: tablets, granules, capsules, granules; sugar, sugar-free medicine particles.

※Food: cocoa, coffee, milk powder, granule juice, spices;

※Other industries: pesticides, feed, fertilizer, pigments, dyes and the like;

Feature

※Set spray drying, fluidized granulating in one step granulation liquid materials to achieve;

※Spray process, especially for micro materials, heat-sensitive materials, effect than FL boiling granulating machine 1-2 times.

※Product final moisture of up to 0.1%, with the anti-powder device, granulating rate of & ge; 95%, can be prepared 0.2-2mm particles.

※Improved design within the mixed multi-fluid atomizer, the proportion of extract can handle up to 1.3g / cm3.

Technical Specifications

project			Aircraft Unit	PGL-3B	PGL-5B	PGL-10B	PGL-20B	PGL-30B	PGL-80B	PGL-120B
Liquid extract		Least	kg/h	2	4	5	10	20	40	55
Liquid extract		maximum	kg/h	4	6	15	30	40	100	140
Boiling capacity		Least	kg	2	6	10	30	60	100	150
Boiling capacity		maximum	kg	6	15	30	80	160	250	450
Hydrometer			kg/L	≤1.30
The amount of raw container			L	26	50	100	220	300	670	1000
Vessel Diameter			mm	400	550	770	1000	1200	1400	1600
Induced draft fan power			kw	4.0	5.5	7.5	15	18.5	22	30
Auxiliary fan power			kw	0.35	0.75	0.75	1.10	2.20	2.20	3
steam	Consumption		kg/h	25	50	120	160	240	280	300
steam			Mpa	0.40-0/60
Electric type power			kw	9	15	21	25.5	51.5	60	75
Compressed air	Consumption		m3/min	0.4	0.6	0.9	0.9	1.1	1.3	1.6
Compressed air	pressure		Mpa	0.20-0.60
Operating temperature			℃	Automatically adjust room temperature -130 ℃
Product moisture			%	≤0.5%(Depending on the specific materials may be)
Material yield			%	≥99%
Equipment noise			dB	≤70
Host size	Φ		mm	400	550	770	1000	1200	1400	1600
	H1		mm	940	1050	1070	1180	1620	1620	1690
	H2		mm	2100	2400	2680	3150	3630	4120	5050
	H3		mm	2450	2750	3020	3700	4100	4770	5800
	B		mm	740	890	1110	1420	1600	1820	2100
