Working Principle

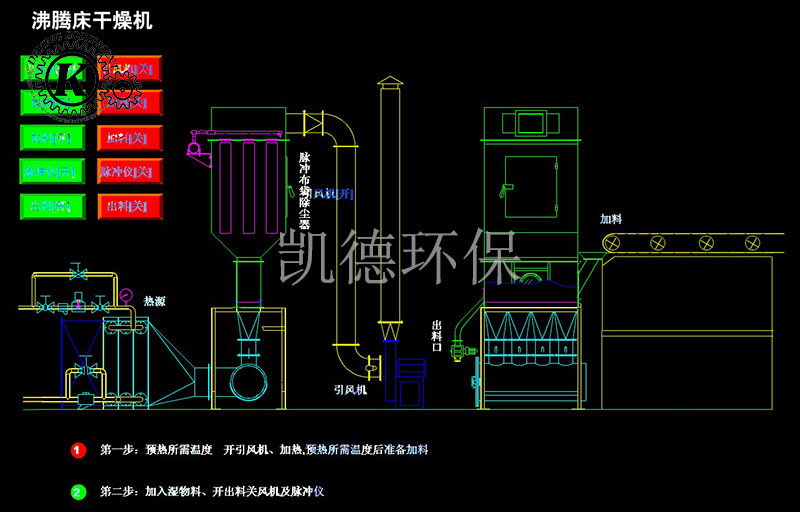

Clean and hot air through the valve plate distribution into the bed body, from the feeder into the wet material is formed in a hot air fluidized state, such as boiling water jump in the bed body, it is called boiling dryer (fluid bed dryer), due to the hot air and the material extensive contact, so in a short period of time it can be dried. Enter from a bed, and a few minutes to a few minutes after the & ldquo; & rdquo ;, boiling automatically out from the other side of the bed.

Applications

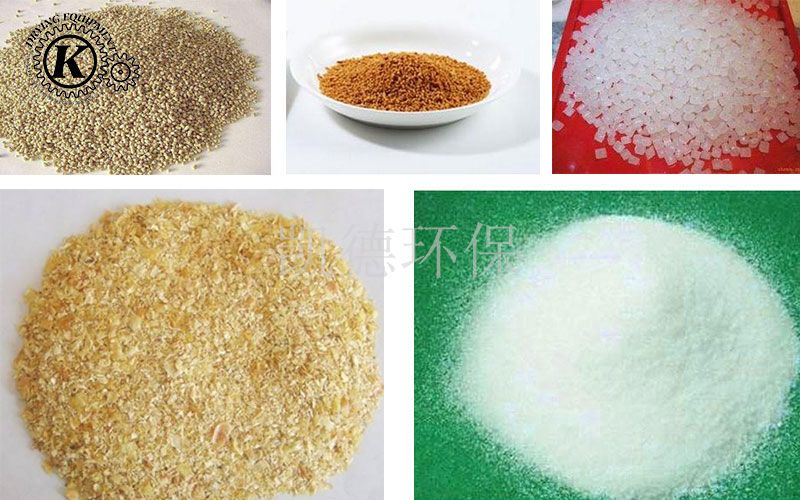

Boiling dryer, also known as fluidized bed, since applications for over 30 years, with continuous improvement, improvement, widely used in the pharmaceutical, chemical, food, food processing and other industries, such as: raw material medicine, medicine granules, powder, feed, plastic resins and other powdery, granular material dehumidification drying. Particle size of material may range 0.1 ~ 6mm, most preferably 0.5 ~ 3mm ..

Installation Notes

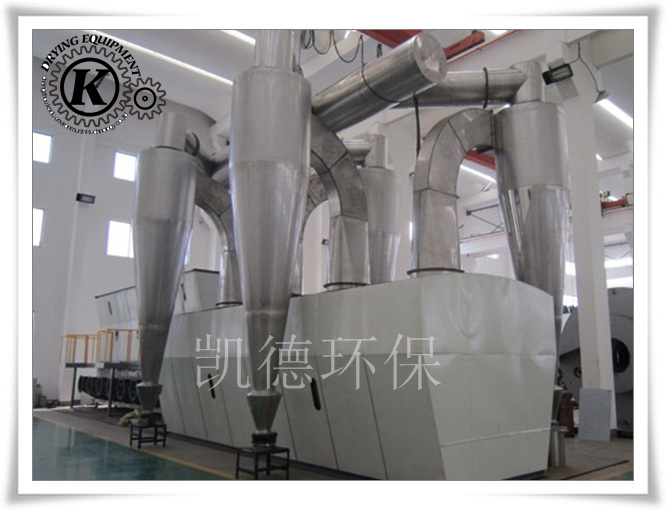

Bubbling bed, cyclone and bag filter placed flat on a flat concrete can be, without foot screws. Fan can be installed indoors or outdoors, the need for base and anchor bolts. Layout can be adjusted, as appropriate, according to plant conditions.

Air duct system should not leak, so as not to affect the drying effect.

Heating method

Steam or electric heating can also be used fuel (or fired) a hot stove directly.

Technical Specifications
