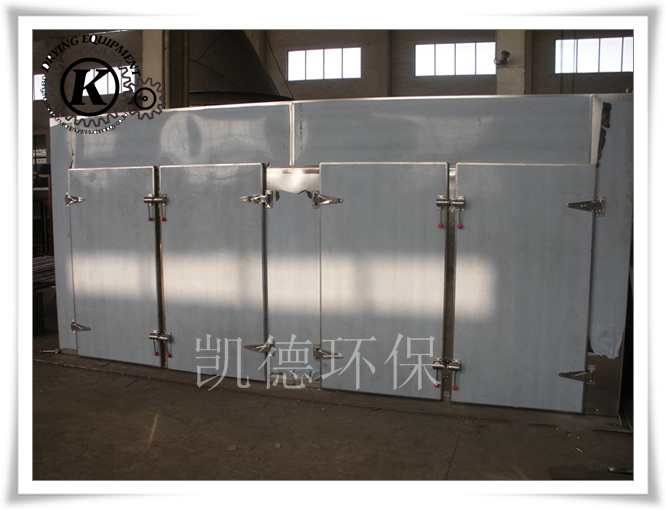

Hot air circulation drying oven

Applications

Hot air circulation oven heating is suitable for pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry materials and products for curing, drying dehydration. As raw material medicine, Chinese medicine, Chinese Herbal Medicine, extracts, powders, granules, powder, water pills, bottles, pigments, dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.

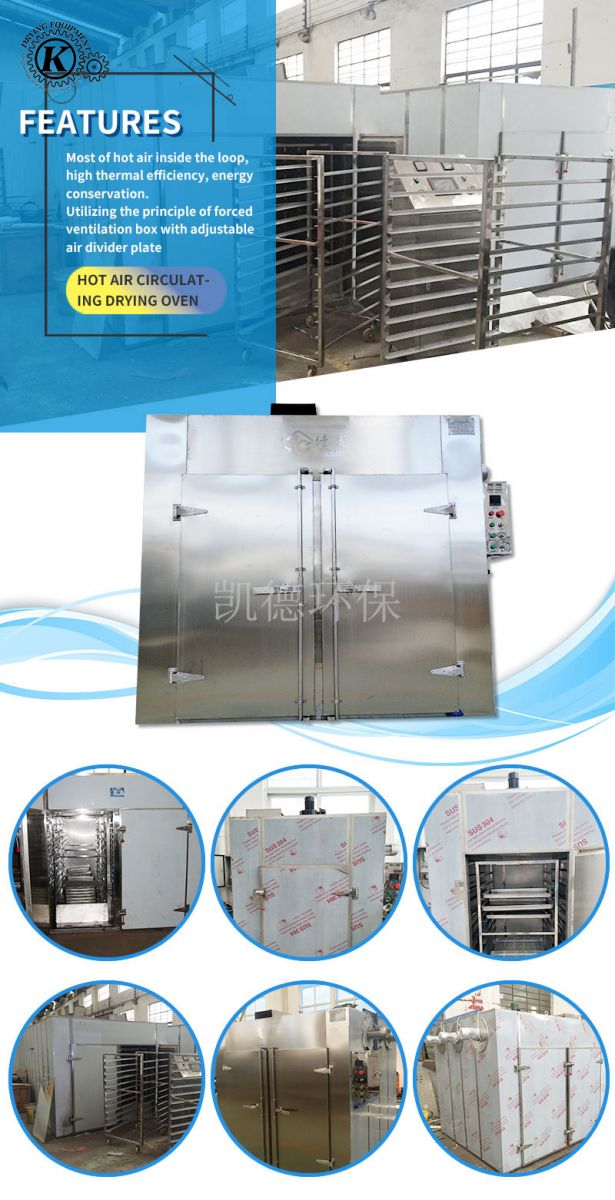

Feature

※Most of hot air inside the loop, high thermal efficiency, energy conservation.

※Utilizing the principle of forced ventilation box with adjustable air divider plate, uniform drying. Source may be steam, hot water, electricity, far infrared wide, wide choice.

※Machine has low noise, smooth operation. Temperature controlled, easy installation and maintenance.

※Wide range of applications, can be used for drying various materials and is a versatile drying equipment.

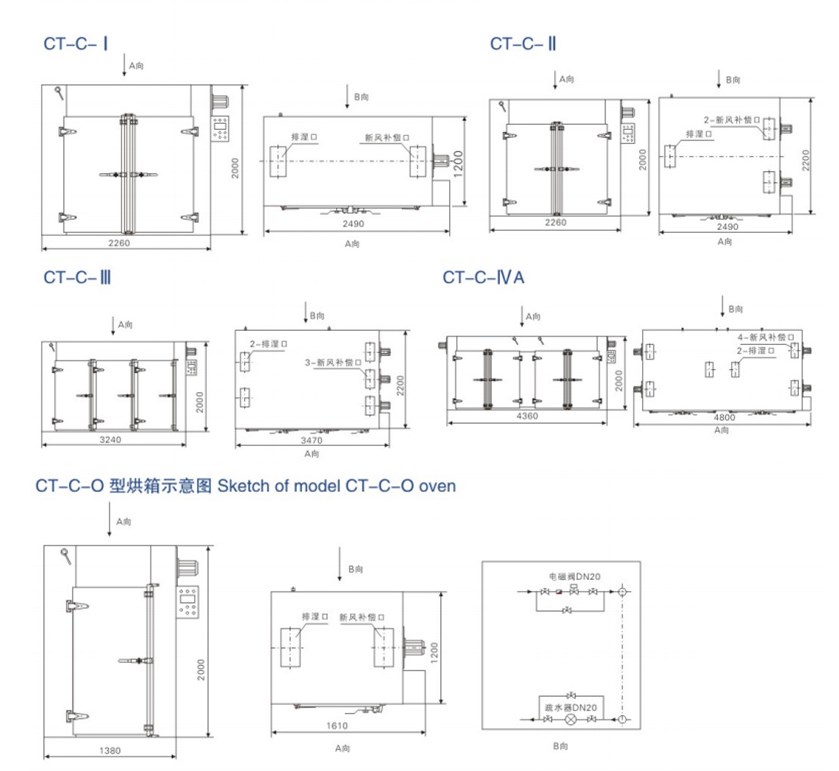

Technical Specifications

No.	model	YY0026 -90 Industry Standard model	Technical Parameters									Fitting			total weight (kg)
No.	model	YY0026 -90 Industry Standard model	evaporation area (㎡)	Effective volume (㎡)	Dry each time amount (kg / batch)	Radiator area (㎡)	Steam consumption (kg/h)	Electric heating power (kw)	Fan Wind (㎡/h)	Fan Electric power (kw)	Shape size W×D×H	A3 is equipped with drying cars (vehicles)	Should be equipped with a baking tray (only)	Temperature Automatic Control Box	total weight (kg)
1	CT-C-O	RXH-7-C	7.1	1.3	60	15	15	6-9	4510	0.45	1380×1200×2000	1	24	Have	820
2	CT-C-Ⅰ	RXH-14-C	14.1	2.6	120	23	20	15	4510	0.45	2260×1200×2000	2	48	Have	1580
3	CT-C-Ⅱ	RXH-27-C	28.3	4.9	240	48	40	30	9020	0.45×2	2260×2200×2000	4	96	Have	1800
4	CT-C-ⅡA	RXH-27-C	28.3	4.9	240	48	40	30	9020	0.45×2	4280×1200×2270	4	96	Have	1880
5	CT-C-Ⅲ	RXH-41-C	42.4	7.4	360	72	60	45	13530	0.45×3	2260×3200×2000	6	144	Have	2100
6	CT-C-ⅢA	RXH-41-C	42.4	7.4	360	72	60	45	13530	0.45×3	3240×2200×2000	6	144	Have	2210
7	CT-C-Ⅳ	RXH-54-C	56.5	10.3	480	96	80	60	18040	0.45×4	4280×2200×2270	8	192	Have	2800
8	CT-Ⅰ	RXH-14-B	14.1	2.6	120	23	20	15	1414	1.1	2480×1200×2375	2	48	No	1220
9	CT-Ⅱ	RXH-27-B	28.3	4.9	240	48	40	30	5230	1.1	2480×2200×2438	4	96	No	1530
10	CT-Ⅲ	RXH-41-B	42.4	7.4	360	72	60	45	9800	2.2	3430×2200×2620	6	144	No	2110
11	CT-Ⅳ	RXH-54-B	56.5	10.3	480	96	80	60	9800	2.2	4460×2200×2620	8	192	No	2300
