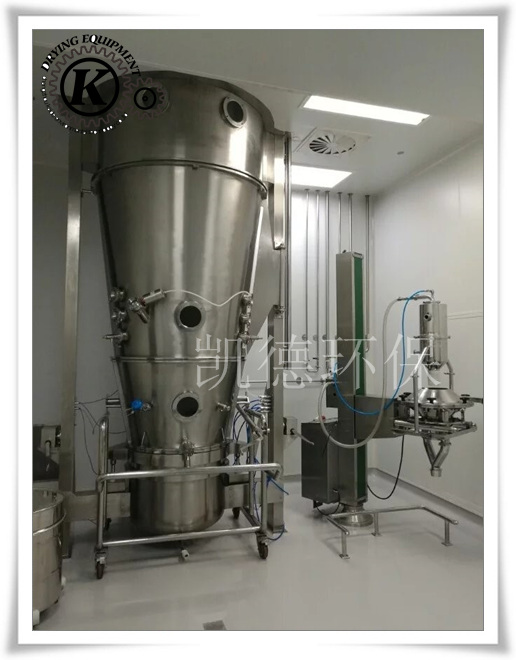

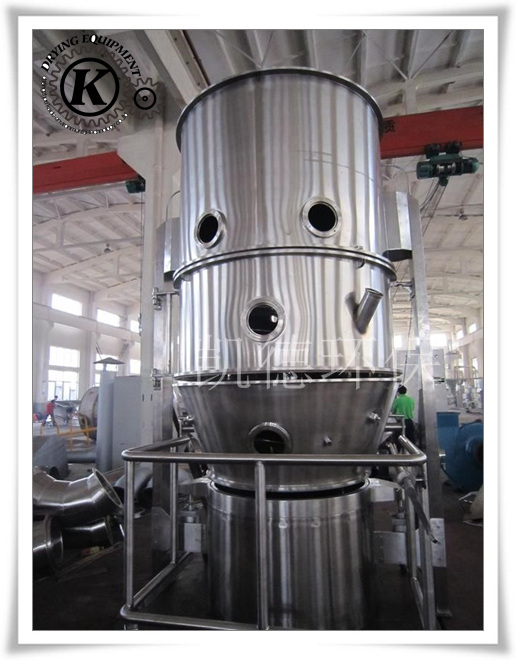

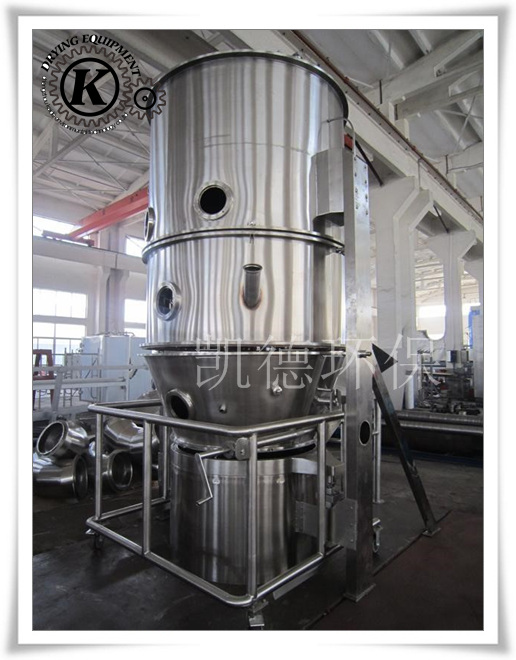

Fluidized Dryer

FG type Boiling Dryer (Vertical)

This machine is mainly used for medicine, food, chemical and other industries powder or dry granular materials.

Features:

1、fluidized drying, fast mass transfer;

2、the negative pressure in the closed state of operation, no dust;

3、mining antistatic filter material, safe operation;

4、the device no dead ends, thorough cleaning, no cross-contamination, according to the special needs, it can increase the stirring mechanism, vacuum feeding system.

5、compared with the GFG, there is a greater flow of space.

Technical Parameters:

Project		Unit	Type
Project		Unit	3	5	30	60	120	200	300	500
Material container	diameter	mm	300	00	700	1000	1200	1400	1600	1800
Material container	Volume	L	12	22	100	220	20	670	1000	1500
Production capacity	Least	kg/batch	1.5		15	30	80	100	150	250
Production capacity	maximum	kg/batch		6	36	72	140	240	360	600
Steam consumption		kg/batch	12	23	70	140	211	282	366	600
Amount of compressed air		m³/min	0.3	0.3	0.3	0.6	0.6	0.9	1.1	1.6
Fan power		kw	2.2	2.2	5.5	11	18.5	22	30	5
Temperature		℃	Normal temperature～120℃ automatic adjustment
Material Yield		%	＞99
Final moisture content		%	～0.2
Noise		dB(A)	≤75
Host height		mm	2100	2300	2500	3000	3300	3800	000	400
